AR Cycles road frame

By 8Aaron8 on 12/01/2013. Bike tags: Fixed gear | AR cycles road race dura ace 7800 10 spd columbus sl lugged

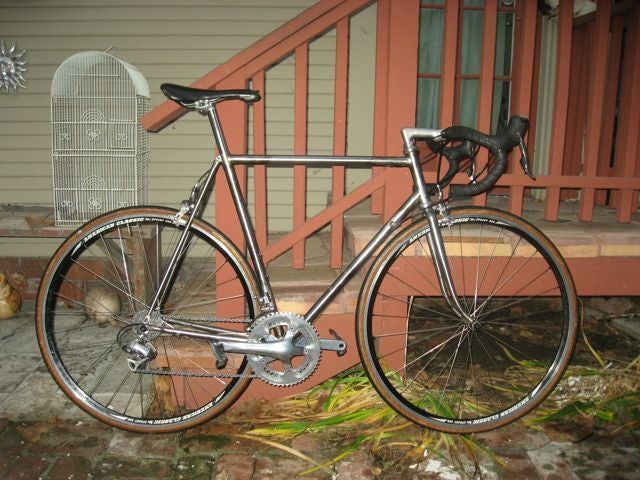

Bike photo
Click to view other photos

AR cycles columbus sl road 56

nitto/itm

AR cycles/campagnolo

american classic sprint 350

american classic sprint 350

dura ace 7800

flite/dura ace

look/dura ace

dura ace 7800

dura ace

Just finished putting this one together. Similar to my last road frame, this one is made of columbus sl/el. My first attempt at an internally lugged fork crown. Time to put a few miles on it to see how it compares

People who friended this bike RideEveryday, Mancha150, campystamp, vqstaphbeard, juicemankilla, Smiley, per.k
» login or register to post comments

Congrats on the build, looks

Submitted by Smiley on 12/02/2013.

Congrats on the build, looks great! Did you clearcoat it?

» login or register to post comments

no, I figure since I am

Submitted by 8Aaron8 on 12/02/2013.

no, I figure since I am going to paint it in a few months I will leave it at is for now, I put a light layer of oil on it for now

» login or register to post comments

slick

Submitted by felissilvestris on 12/02/2013.

This thing looks super tight, even if I personally would prefer a bit more clearance. BTW, what exactly is the advantage of this type of 'combined' seat lug, i.e. that the bolt directly connects to the seat stays ? With an old (aluminium) frame of mine, I tightened the bolt just a bit too much and thus managed to rip down the bolt case (solved that with a clamp).

Anyway, Great work ! ...Will it get additional coating ? Are there close-ups of the internally lugged crown and maybe the bb area ? What dropouts were used here, and where did the EL tubes come into play and why ?

» login or register to post comments

The seat lug design is

Submitted by 8Aaron8 on 12/02/2013.

The seat lug design is really more for aesthetics than anything else. I think they are a little stronger than side tacked stays and a smidge lighter because there is less material, but I mostly did it for the look. Sorry to hear about your frame. I will be painting this when the weather permits, I have all the supplies to do so, but without a warmed paint booth I can't do much right now. I can get some photos of the fork up soon. The dropouts are gipiemme, very similar to the old shimano vertical dropouts. As far as the tube set is concerned, it is all columbus sl, which the current run is just a reproduction of the old EL tubes, thus sl/el.

» login or register to post comments

Holy geometry! Crit racer?

Submitted by ColumbusSLX on 12/02/2013.

Holy geometry! Crit racer? That thing looks fast and nimble. Very hot.

» login or register to post comments

I will definitely be doing a

Submitted by 8Aaron8 on 12/02/2013.

I will definitely be doing a little more racing on this one, super responsive ride

» login or register to post comments

Wow that's tighter than a

Submitted by vqstaphbeard on 12/02/2013.

Wow that's tighter than a gnats butt over a rain barrel.

» login or register to post comments

haha, I was a little worried

Submitted by 8Aaron8 on 12/02/2013.

haha, I was a little worried about the shifting as shimano suggests a 405 minimum cs, while this is 395, however it shifts great

» login or register to post comments

Sub 400 stays? That is

Submitted by vqstaphbeard on 12/02/2013.

Sub 400 stays? That is tight!

» login or register to post comments

The seat tube has a slight

Submitted by 8Aaron8 on 12/02/2013.

The seat tube has a slight crimp in it to accommodate

» login or register to post comments

So Cool

Submitted by campystamp on 12/02/2013.

Man, that is so cool you're making these awesome frames.

» login or register to post comments

Thank you, I always

Submitted by 8Aaron8 on 12/02/2013.

Thank you, I always appreciate your thoughts, I currently have 2 more in the works
