Rail Bike

By stinky pete on 04/20/2012. Bike tags: Fixed gear | Rail Bike

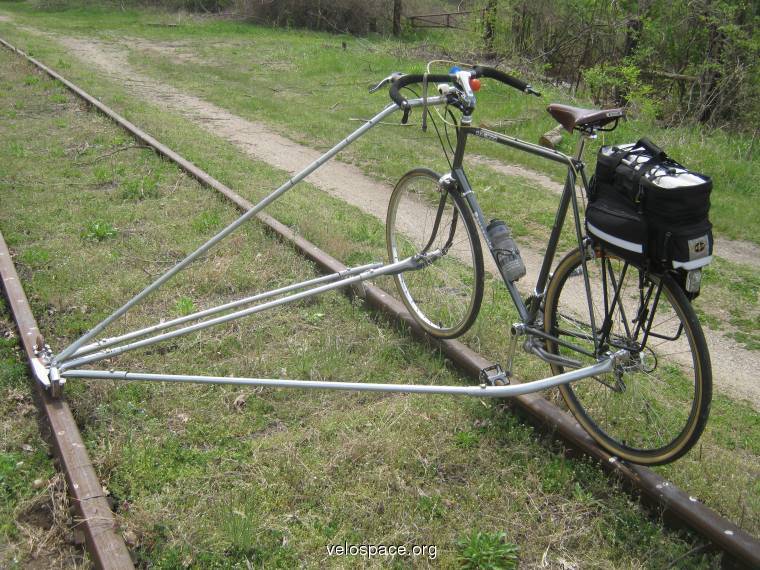

Bike photo
Click to view other photos

The silver poles are 1” conduit and whatever size just fits inside it.

I used an ahead set type stem to hold the conduit and attach to the stem.

I used a 1” steer tube fork off a road master MTB that would accept the 700c wheels I have. Onto this I slid a 1 1/8 fork and wheel off of a razor scooter, and a bit of steel for a guide.

I spread the road master fork open enough to attach to the bicycles fork using the existing quick release.

I bent a bit of conduit and drilled a hole for the quick release to pass through. I feel a solid axle with nuts would be easier for installation and removal though.

This is what happnes when a person works nights with too much time to think

People who friended this bike dienasty, VintagebikePhil, kyle.k, deiseldog706, zombiewarfare, fastfixie, Aaron C, campystamp, dedalu5, Tracker, Chris V, the fumingator, ClouDCrusheR, Legislator, 10510, Jefho, solofe, Beckets, per.k
» login or register to post comments

Railbikes and Railbiking

Submitted by railbike on 04/06/2013.

Hi, I have years of experience designing and riding railbikes, providing tours in various places. Take a look at my website for photos, history and buying links. www.railbike.com

» login or register to post comments

Rail bike?

Submitted by barrel on 05/02/2012.

Is it rail bike or fail bike?

» login or register to post comments

Derailments suck…

Submitted by stinky pete on 04/23/2012.

The Panasonic frame is dead.
Derailed today and the rail guide out front caught a rail tie solidly resulting in an instant stop at around 16 MPH. Result? Me over the bars but OK. Bike? Bent frame at the top tube behind the steer tube and in front of the seat tube, down tube bent at the steer tube and in front of the bottom bracket. The front tire now rests beside the water bottle. There doesn’t seem to be any other damage though.

Stay tuned for #2…

» login or register to post comments

Had a feeling

Submitted by marcintosh on 04/30/2012.

I gotta say, I had a feeling that would happen as soon as I saw the pics. If it were me I would replace that plate with another skate wheel, perpendicular to the ground, that rolls along the side of the track. That's how they do it on roller coasters these days. Should eliminate steering issues, too. At the very least, that plate should only be as low as the bottom of the head of the rail (and maybe rounded/angled, so it skips over obstacles)

I'll say this, though. You've inspired me to make a trip to Home Depot and seek out some abandoned track here in South Jersey. Great mod!

» login or register to post comments

Pictures or it didnt happen

Submitted by bensonisajew on 04/23/2012.

Pictures or it didnt happen

» login or register to post comments

Pics here...

Submitted by stinky pete on 04/23/2012.

http://s1159.photobucket.com/albums/p621/lwqqq1/

» login or register to post comments

...

Submitted by keytarjunkie on 04/21/2012.

me:
"rail bike? what the hell is a ra.....what the actual fuck."
this thing is so cool. how well does it handle turns? how smooth is it?

» login or register to post comments

how well does it handle turns? how smooth is it?

Submitted by stinky pete on 04/21/2012.

Most curves are gradual with train tracks. I haven’t had any trouble as of yet. (I guess you could say it corners like it’s on “rails”?)
The ride is as smooth as the tracks are. There is a little side-to-side play, but I feel that is due to my design.

» login or register to post comments

That's all kinds of awesome.

Submitted by Franzen on 04/20/2012.

That's all kinds of awesome. Do you have to constantly steer a tiny bit to the left? I like that the outrigger is open on one side, looks like it would allow you to escape to the right if you encountered a train. How much distance have you put on it?

» login or register to post comments

Do you have to constantly steer a tiny bit to the left?

Submitted by stinky pete on 04/21/2012.

I have found that it helps to possession the guide fork a little off center at the quick release point so that the steel guide wants to stay near the rail. The out rigger also has a guide on the inside of the rail, so with both of them, the wheels stay on the rails.

I figure I have done maybe less than 7 miles to date, but plan to go end to end on my section of track soon..

» login or register to post comments

hahaha looks fun as hell.

Submitted by jamesbooty3 on 04/20/2012.

hahaha looks fun as hell. stay safe though dude.

» login or register to post comments

.

Submitted by dienasty on 04/20/2012.

This looks like sooooo much fun.

» login or register to post comments
