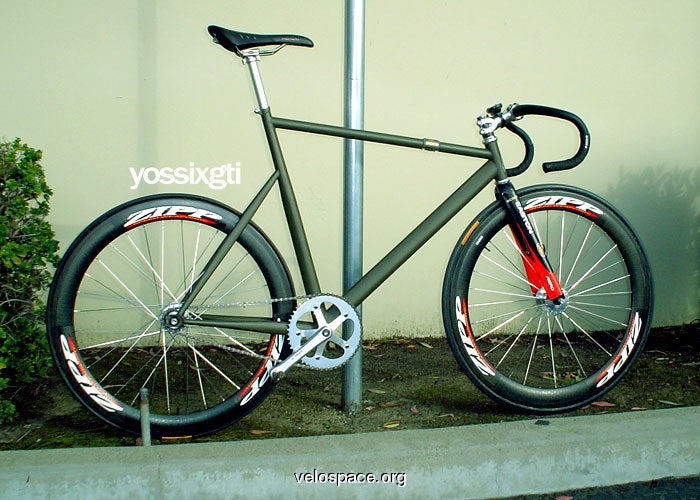

Vail Cycle Works Pursuit Frame

Click to view other photos

Frame / Size / Year:
Vail Cycle Works Pursuit Frame

Fork / Headset:
EASTON 90EC AERO CARBON and Chris King Headset

Front Wheel / Hub / Rim / Tire:
Zipp carbon wheel

Rear Wheel / Hub / Rim / Tire:
Zipp carbon wheel

Crankset / Bottom Bracket:
Phil wood

Notes:

Custom Spec'd & Handmade by Jack Rossman of Vail Cycle Works

Rider is 6'1", 175 lbs. 59cm Large Size
Seat Tube Length Center to Center : 59cm
Top Tube Length Center to Center : 65cm
Head Tube Length : 4.25" (10.8cm)
Head Tube Diameter : 1 1/8"
Chain Stay Length : 15.25-16.25"
Bottom Bracket : 68mm

head angle 74'
seat angle 77'
top tube : 60.5mm
chainstays : 385mm
B/B height : 290mm
stand over : 818mm
drop outs SUB 11.0 120mm track.

Aero Tubes of Columbus Steel - Stiff!

color : Matte Mash Green Powder Coat, Buddha on headtube.

Geometry figures of the frame, from Jack the frame builder!

People who friended this bike thomasmurdock, kmenon610, Toaster_Cake, greg, CONDENADO, darklordoflove, larock65, brian itzaina, onelesslimb, mr.2ter, flya30, iamjohng, rudder, chunkysb, peteza, Badjir, ryderryderryder, Phurious Phil, Shortyx510, Garym, mafffoster, Jfree, Joshua A.C. Newman, RobLongTALLpantsBOB, qbarawk, aliderkrasse, tracksloth, pockmark, dustin, zmstorm, fabio698, hollowgram5, Brett Kuck, T RACKOSAURUS, fixedpuch, turd., planteman, Spency, Miles Merlino, cannonhugodale, korbs, Delnuggets, solofe, craiglowery,

» login or register to post comments

nice build!

Submitted by Stanley Mansou on 03/23/2009.

hey must ride like the wind, was looking for a 650 fork like that for my TT bike, the ec 90 comes in 1" as well right? i got the TT on my profile if u want to check it out. cheers
